UGOOS AM6B Plus Amlogic S922X-J 4GB/32GB Android 9.0 4K TV BOX

 (In stock)
SKU: HS-2443-4WNRS

$166.99

Add to wishlist Compare

UGOOS AM6B Plus Amlogic S922X-J 4GB/32GB Android 9.0 4K TV BOX Wake Up on LAN with 2.4G+5G MIMO WIFI 1000M LAN Bluetooth 5.0 HDMI 2.1 USB 3.0 - Black


Highlights

AM6B Plus is a brand new remastered version of 2020 successor AM6 Plus with SoC Amlogic S922XJ, WiFi 6 module, and other improvements.

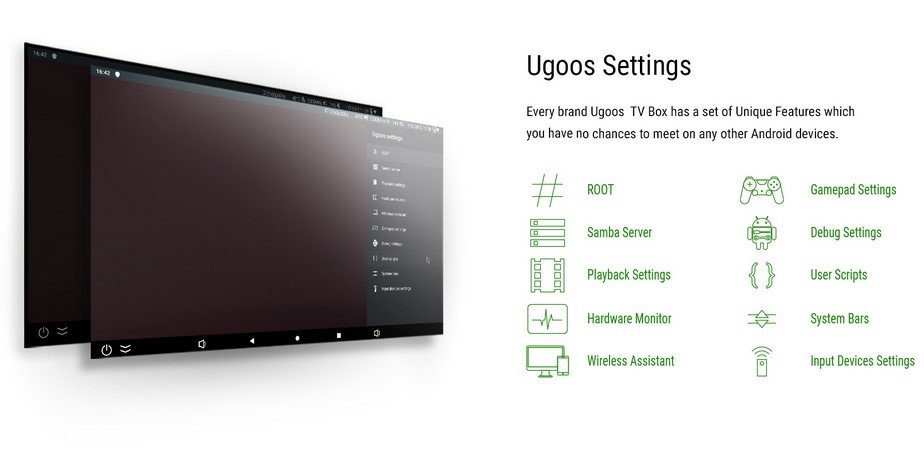

AM6 Plus gets USB 3.0 Fast USB, Bluetooth 5.0, WIFI 5.0/2.4 GHz with MIMO RSDB Technology Support, and the whole bunch of brand unique Ugoos Settings on board.

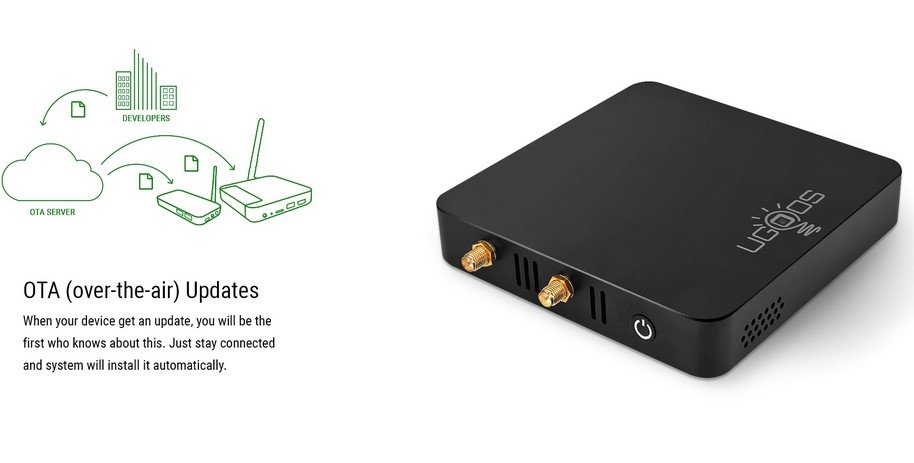

Device comes with OTA updater, so you no need to update firmware manually.

 w14ksjlxtjk.jpgweuzeun34g0.jpg4ufxftupwr4.jpg1fceq4pftn4.jpggcyto1oeqcu.jpgg5yvg5kpgyq.jpg1ireveepch2.jpg

Specification

General Brand: UGOOS
Model: AM6B Plus
Type: TV Box
Hardware

Operation Syste: Android 9.0
Language : English, Chinese ...Multi-Language support
CPU : Amlogic S922XJ with 12nm, Quad core ARM Cortex-A73 and dual-core ARM Cortex-A53 CPU
GPU: ARM Mali TM-G52 MP6(6ppc)
SDRAM: LPDDR4 4GB
Storage Capacity (Flash) : 32GB EMMC
WIFI : 2.4G+5G The wireless module complies with IEEE 802.11 a/b/g/n/ac/ax 2x2 MIMO standard.
Bluetooth: Bluetooth 5.0 with LE technology
The Extended Storage: TF Card, up to 32GB (SD2.X,SD3.X,SD4.X, eMMC ver5.0)
Power Supply: DC 12V/2A
HDR : Support

Communication

WiFi: AP6398S,2.4G/ 5G WiFi,IEEE 802.11 a/b/g/n/ac 2x2 MIMO
LAN: 1000M
Bluetooth: V5.0

Media Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders
Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps
Supports multiple "secured" video decoding sessions and simultaneous decoding and encoding
H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps
VP9 Profile-2 up to 4Kx2K@60fps
H.265 HEVC MP-10@L5.1 up to 4Kx2K@60f
AVS2-P2 Profile up to 4Kx2K@60fps
H.264 AVC HP@L5.1 up to 4Kx2K@30fps
H.264 MVC up to 1080P@60fps
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
WMV/VC-1 SP/MP/AP up to 1080P@60fps
AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
RealVideo 8/9/10 up to 1080P@60fps

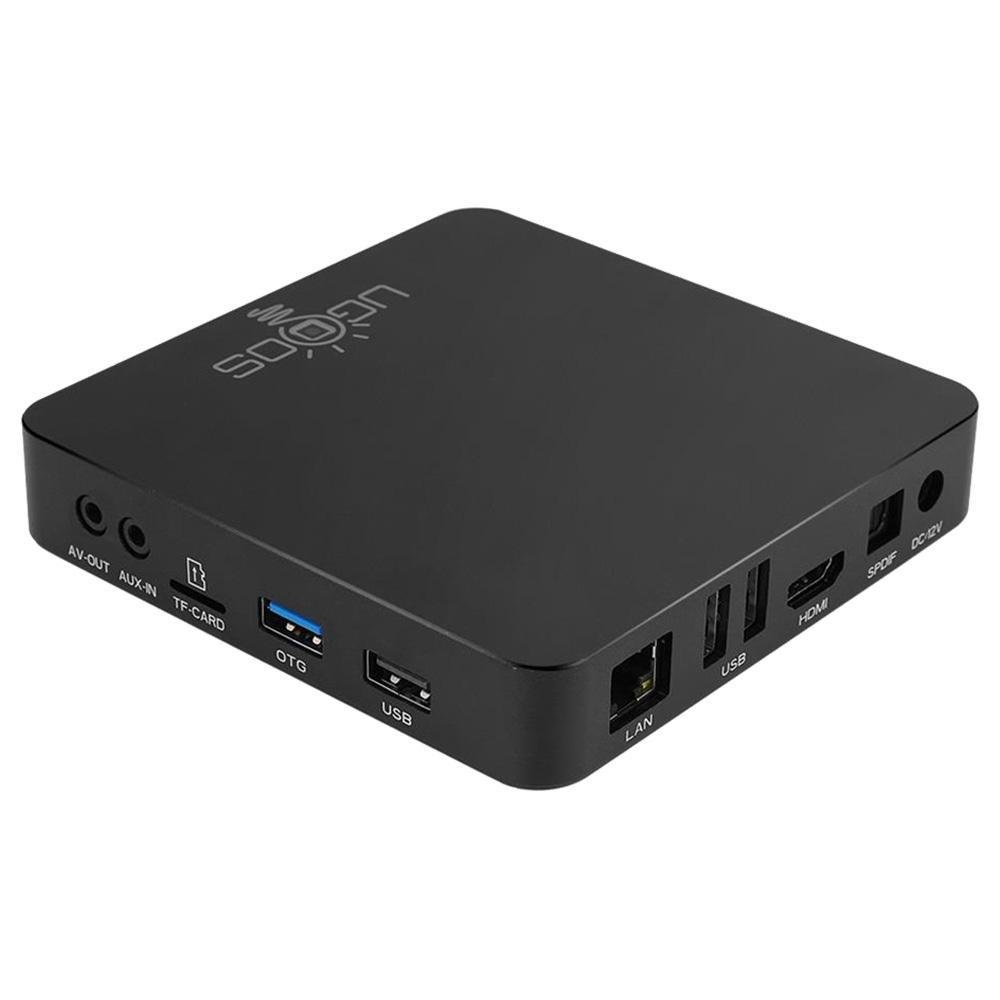

Interface

HDMI Output: HDMI(2.1 and 2.0 ) to support maximum 4K@60fps output(HDCP2.2)
USB Port: 1*USB 3.0 Fast Speed, 3*USB 2.0 Host
Optical Output: 1*SPDIF
Led Work Light: Support
Network: 1*RJ45 1000M (1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet MAC with RGMII
interface)
Power Supply : 1*DC Jack

Other Features

Remote Control: Remote controller
IM Software: Support Skype/QQ/MSN/GTALK (Depends on APK)
Office Software: WORD/EXCEL/PDF(Depends on APK install)

Power

Power Type: External Power Adapter Mode
12V-2A 24W Certification
Input: 100-240V~50/60Hz
Output: 12V 2A

Dimensions&Weight Dimensions : 117*117*18.5mm
Net Weight : 300g
Gift Box Size: 162*162*80mm
Package Contents

1 x TV Box

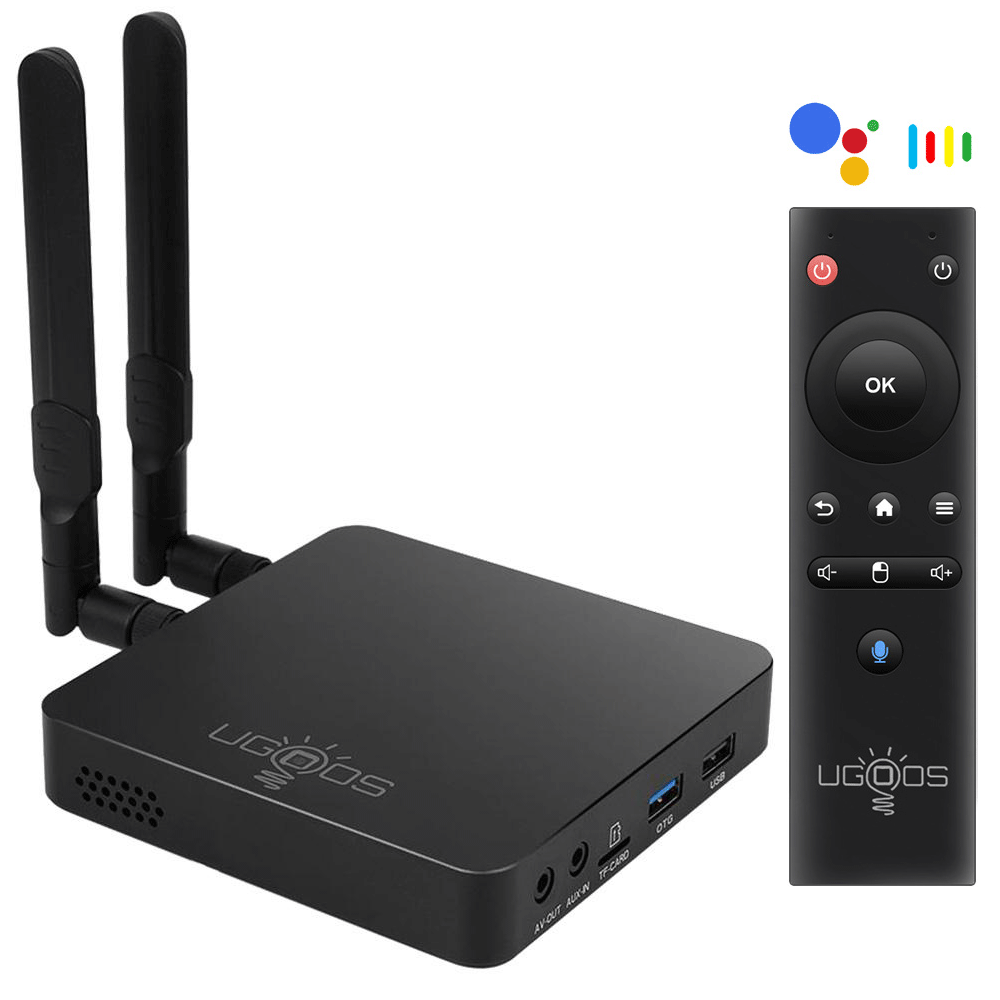

1 x IR Remote Control
1 x Power Adapter
1 X HDMI Cable
1 X USB Cable

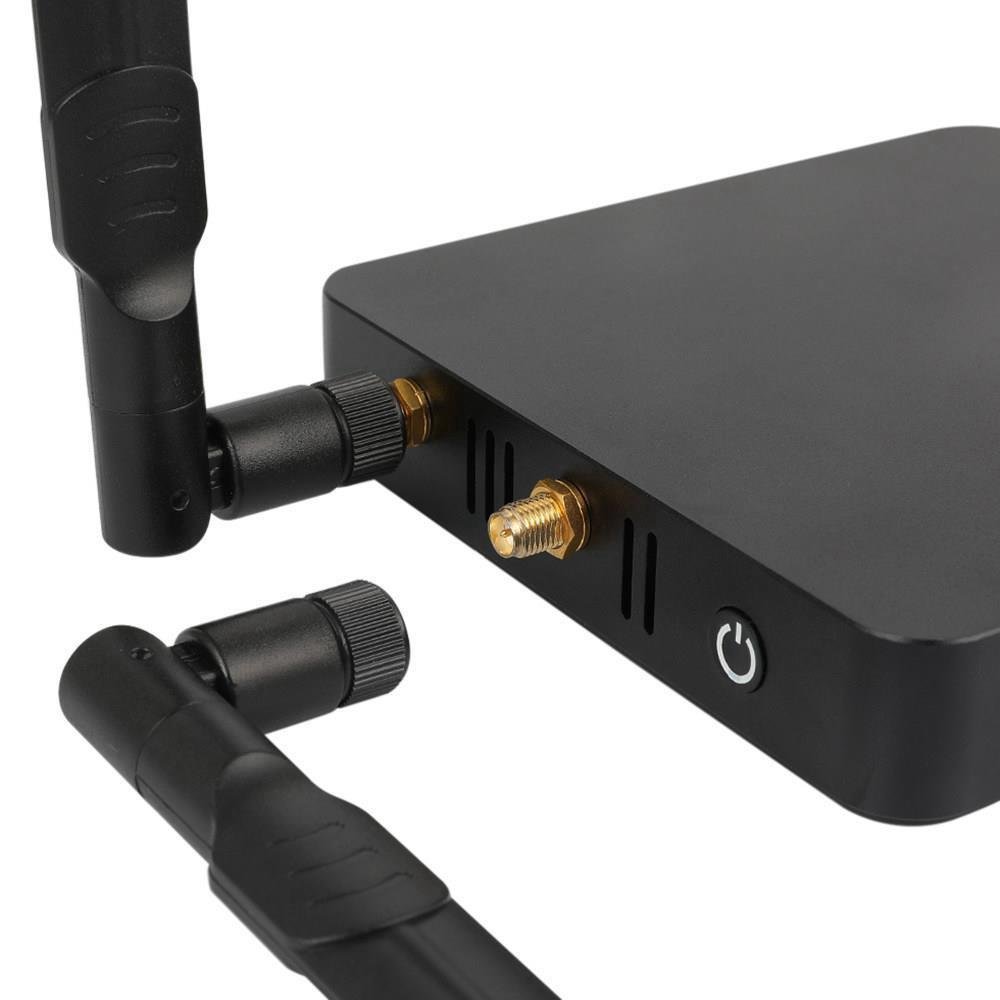

2 X WIFI Antenna
1 X User Manual
